Product Description

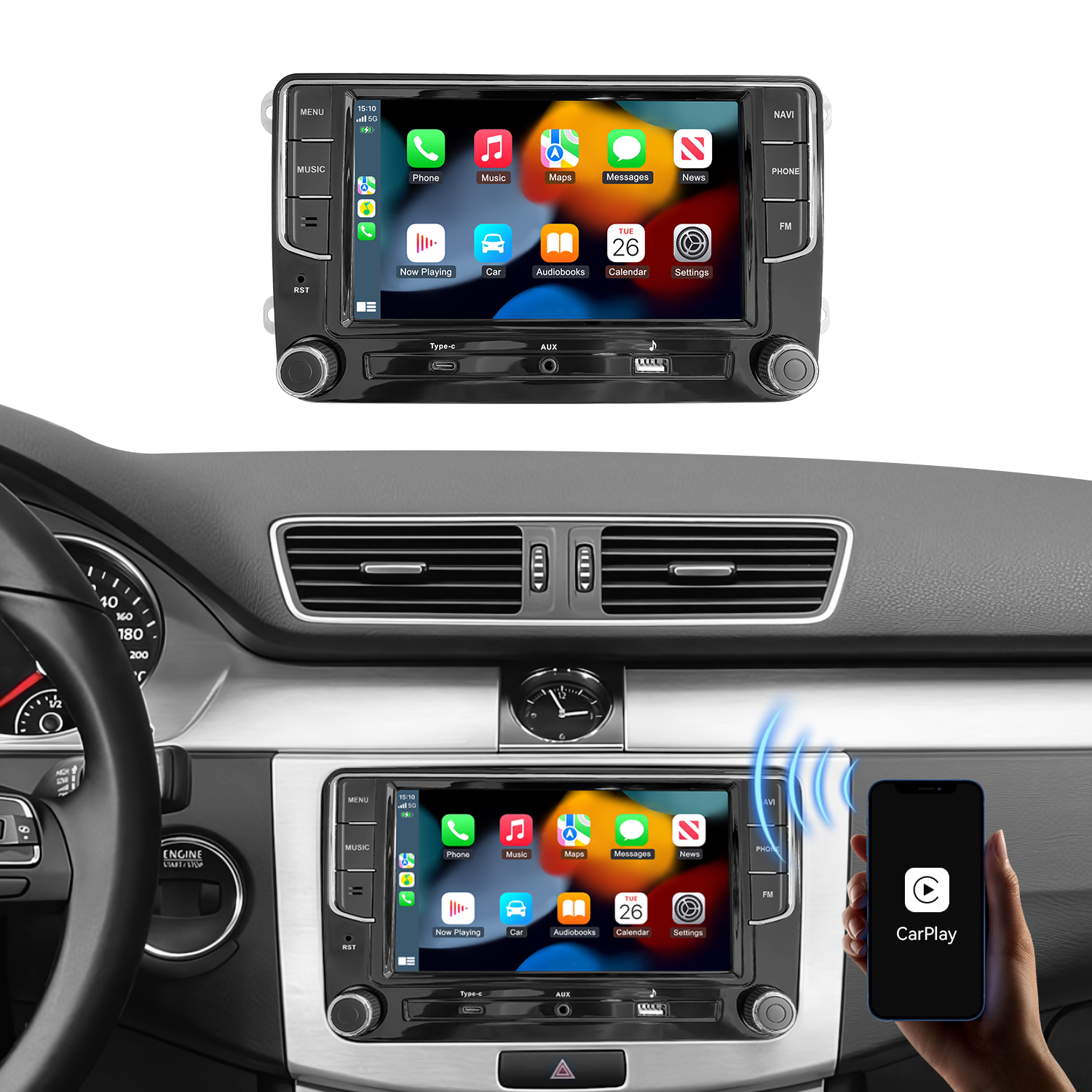

This 8-inch in-dash multimedia system is custom-designed for Volkswagen models, integrating the latest smart vehicle technologies. With wireless Apple CarPlay and Android Auto, you can enjoy full smartphone integration without messy cables. Control music, maps, messages, and calls directly on the crisp HD touchscreen, or use voice commands for hands-free operation.
Built-in CAN-BUS compatibility ensures seamless integration with your car’s existing electronics, such as steering wheel buttons, parking sensors, and lighting systems. Whether you're reversing with a backup camera, making a hands-free call, or streaming music over Bluetooth, this system ensures a smooth, safe, and enjoyable drive.
Key Features
Tailored for VW Vehicles
Compatible with both PQ and MQB Volkswagen platforms. The included CAN-BUS box ensures plug-and-play installation and keeps original vehicle features intact.
8” HD Capacitive Touchscreen
Responsive, glare-resistant display with intuitive menu layout and customizable UI settings (brightness, contrast, color, wallpaper, etc.).
Wireless CarPlay & Android Auto
Say goodbye to cables—seamlessly connect your iPhone or Android device wirelessly. Access Google Maps, Apple Maps, Spotify, WhatsApp, calls, and more.
Steering Wheel Control Learning
Assign functions like volume, next/previous, mode switch, or call answer to your steering wheel buttons with easy 2-wire setup.
Bluetooth Hands-Free Calling & Streaming
Connect your phone via Bluetooth for clear calls and wireless music playback. Caller ID, call logs, and phonebook access are fully supported.
Advanced Audio Settings
Built-in EQ, time delay, and audio filters let you fine-tune your music experience to your car’s acoustics.
Dual Camera Input Support
Supports both rear-view and front-view cameras. Parking guidelines, mirror flip, and mute on reverse enhance driving safety.
Multiple Media Playback Options
Plays audio, video, and image files from USB drive, with support for a wide range of formats (MP3, FLAC, MP4, AVI, JPEG, etc.).
Firmware Upgrade via USB
Future-proof your system with easy firmware updates to improve features and stability.
Technical Specifications
| Category | Details |
| Screen Size | 8.0 inch HD Capacitive Touchscreen |
| Resolution | 1024×600 (typical) |
| Car Compatibility | Volkswagen PQ & MQB platform models |
| Operating System | Linux OS |
| Wireless CarPlay | Yes |
| Wireless Android Auto | Yes |
| USB Playback | Supported (music, video, images) |
| AUX Input | Yes (AV IN) |
| Bluetooth Functions | Hands-free calls, audio streaming |
| Camera Support | Front & Rear Camera input |
| Parking Assist Lines | On/Off switchable |
| Steering Wheel Control | 2-wire learning with key assignment |
| Audio Setup | EQ, Delay, Filter |
| Language Options | Multi-language support |
| Firmware Update | USB upgrade supported |

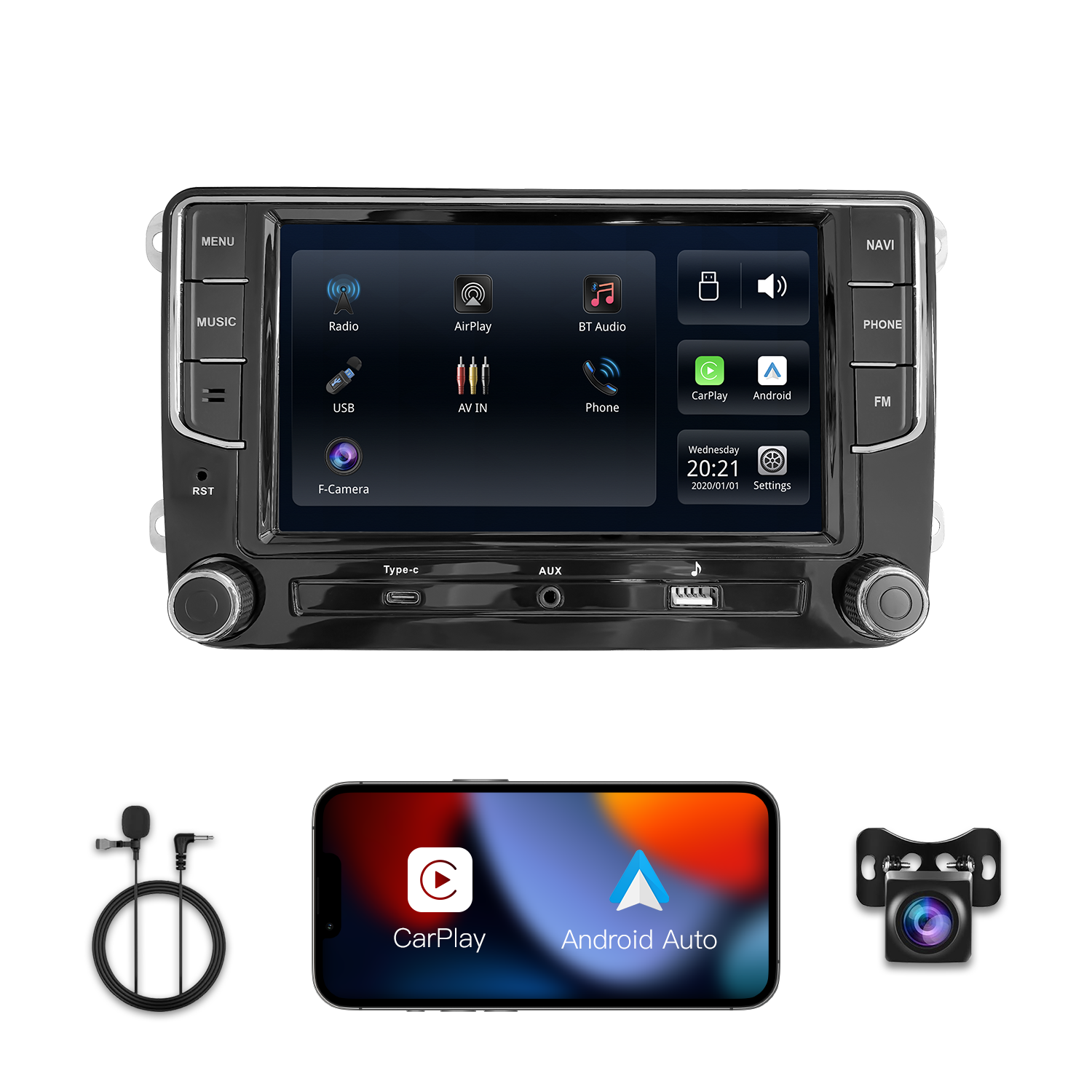

What’s in the Box?
1 × 8-Inch VW-Compatible Head Unit (LDS-DA8F)
1 × External Microphone
1 × User Manual
2 × Power & Audio Cable Sets (A & B for different VW models)
1 × CAN-BUS Decoder Box (vehicle-specific)
1 × Rear Camera Installation Kit
Smartphone Integration
Apple CarPlay: Wired & wireless connection via USB/Bluetooth
Android Auto: Wired & wireless connection via USB/Bluetooth
iOS Mirror & AirPlay: Mirror iPhone screen via cable or wireless
Bluetooth Pairing: Easy pairing for media & calls
Ideal For:
✔ VW owners looking to upgrade to a modern infotainment system
✔ Drivers who want wireless phone integration without replacing factory functions
✔ DIY installers needing plug-and-play VW compatibility
✔ Car owners who value safety features, such as camera input and steering control
✔ Music lovers seeking custom EQ and crystal-clear playback
Installation Tips
Ensure CAN-BUS mode is set correctly (default: VW PQ; switch to MQB if required).
Use provided cables and reference your vehicle model for proper power/audio harness.
Steering control configuration is done through Settings > Steering Wheel > Learn Mode.
For best performance, connect the external mic and place it near the driver’s seat.
